Minneapolis, MN -- (ReleaseWire) -- 07/20/2021 --To expand its training facilities, Western Technical College moved its shooting range from a classroom building to an existing well-built storage building on the school's 160-acre campus near Sparta, Wis. Eliminating the frequent sound of gunfire in a classroom building and reducing sound leakage were among the primary reasons for moving the range. SONEX® Valueline Panels from pinta acoustic, inc. were installed to absorb sound reverberation and reduce decibel (dB) levels inside the building while minimizing noise outside the facility. pinta acoustic products, including SONEX Valueline and SONEX Classic panels, have been installed in many shooting ranges, including law enforcement, military, commercial and residential gun ranges.
The LEED® Silver Certified Sparta Public Safety Training Facility consists of indoor and outdoor firing ranges and a forensic investigation laboratory. The multifaceted building was designed to provide scenario-based training and is available for rent. Extra-wide doors enable vehicles to be placed in the building, and alternating flashing lights can simulate traffic stop conditions in the shooting range. In addition to the college's students, the shooting range is used by various agencies for training. More convenient to access than the range at nearby Ft. McCoy, the agencies renting the facility include U.S. Fish and Wildlife Service, Wisconsin Emergency Medical Services (EMS) and the Wisconsin Department of Natural Resources.
"We worked with Savage Range Systems to construct the indoor shooting range, and safety is always very important. Charles Nester of Savage Range Systems recommended using pinta's SONEX Valueline
Panels to absorb noise," said Jay McHenry, director of facilities at Western Technical College. "Nester's team is very experienced and can help facility managers and owners achieve their goals while saving money that can be used for other purposes."

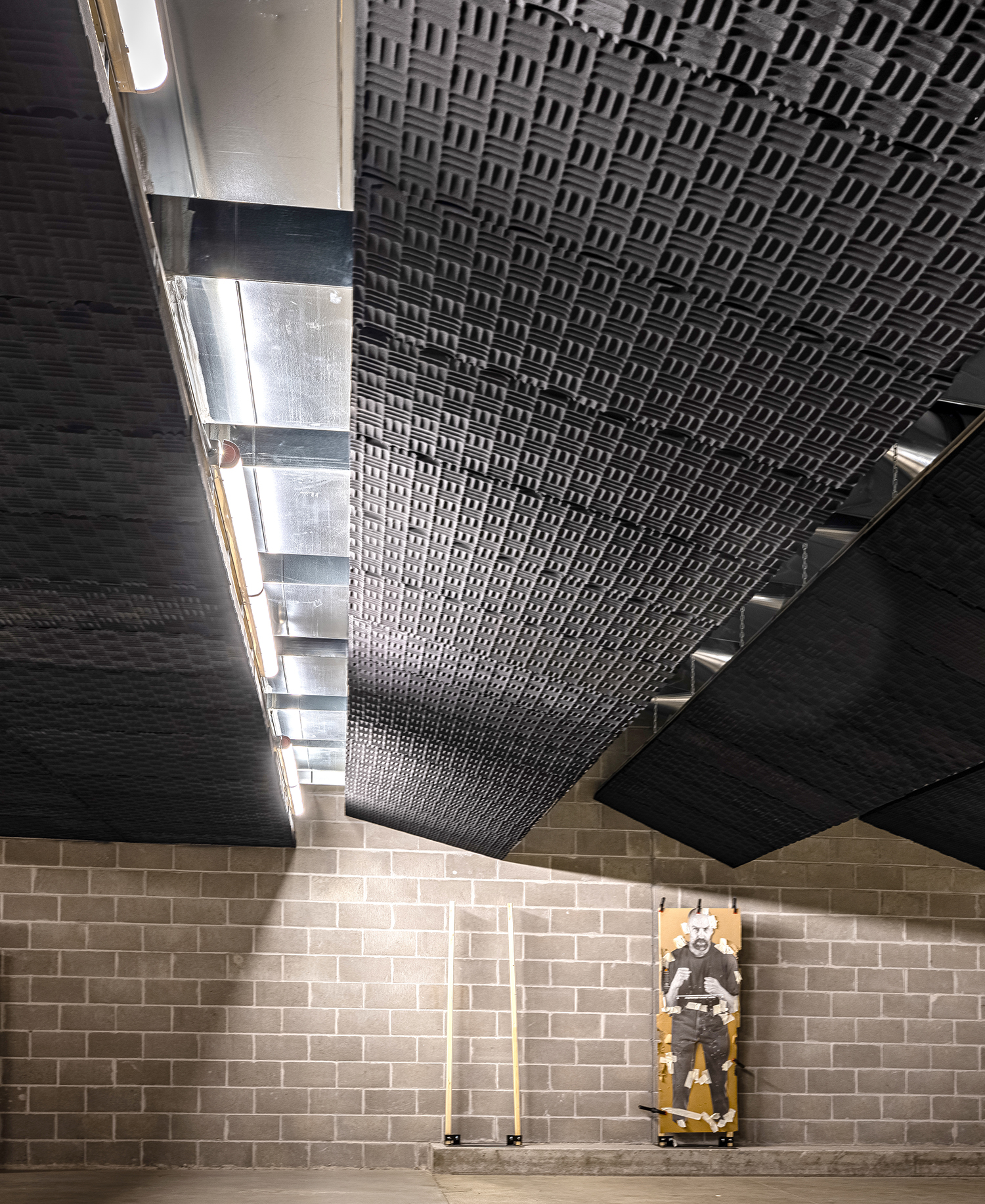

Savage Range Systems glued the SONEX Valueline to ¾-inch plywood sheets in overhead containment baffles that consist of the plywood, an air gap and AR5000 steel, a high-carbon, abrasion-resistant steel alloy. The baffles protect the building from ricocheting bullet. A bullet can go through the foam, but not the steel; the baffle will capture any deflected bullet that hasn't found its way to the front of the range.
pinta's water-based acouSTIC™ adhesive was used to install the SONEX Valueline panels to the plywood. The baffles hang from chains that are attached to trusses, and were installed starting about three feet from the firing position, then spaced out down the range. The acoustic material absorbs sound energy and reduces the reverberation time of sound within the building, lowering the dB level inside the range as well as outdoors.
"People in higher education like to share their observations and concerns, but I can honestly say there have been no complaints or concerns about noise regarding the Public Training Facility," McHenry says. "Of course, people using the shooting range still use high-performance hearing protection. Outside the building, you can hear 'pop, pop, pop' as handguns and rifles up to .223 caliber are fired, but it's not at the level of an alarming sound."
Sound produced by gunfire is deafening outdoors, and when the acoustical energy it produces is confined to a small indoor space such as a firing range, it gets even louder. The noise can reach levels as much as 10 times greater than those experienced in outdoor ranges. SONEX Valueline helps eliminate this indoor range effect by absorbing sound energy that would otherwise build up to dangerous levels, causing serious discomfort and potentially even hearing damage.
A surprisingly small number of acoustical panels go a long way in most shooting ranges. Typically, a range requires an amount of foam equal to the square footage of its ceiling. The foam is divided between the ceiling and walls for the most efficient sound absorption. This will normally reduce the amount of acoustical energy in the range by an amazing 85 percent.
Part of managing acoustics includes good construction of the walls, ceiling, conduit, and the heating, ventilation and air conditioning (HVAC) system. McHenry upgraded the building's HVAC system to capture smoke and lead dust.

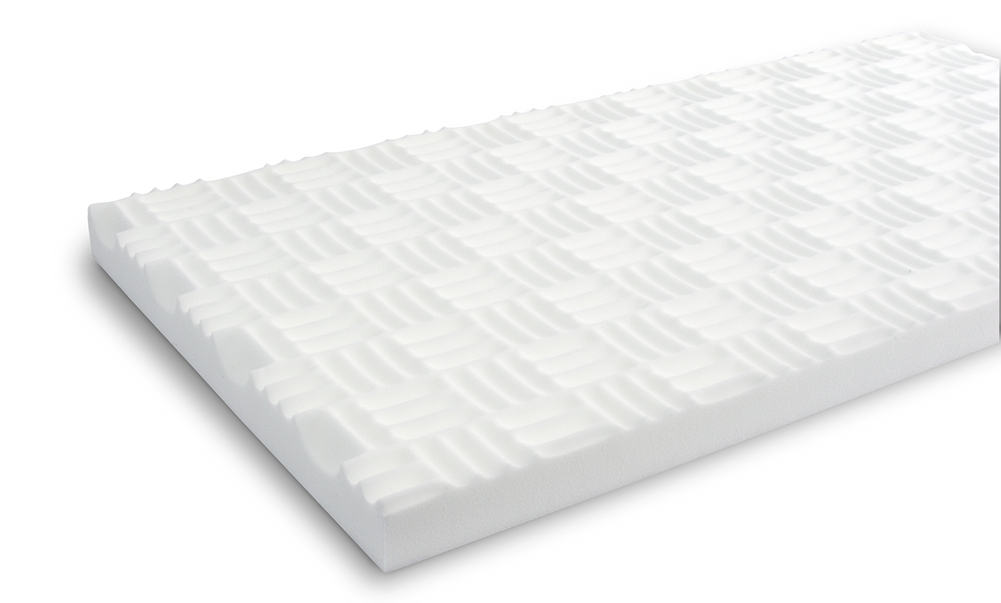

SONEX® Valueline Panels have a softly sculpted surface pattern and are made from lightweight, nonfibrous, open-cell expanded melamine WILLTEC™ foam. SONEX Valueline panels are affordable and easy to install with acouSTIC™ adhesives. Standard SONEX Valueline panels are available in 24" x 48" (610 mm x 1219 mm), and custom sizes and shapes up to 48" x 98" (1219 mm x 2438 mm). Typical thickness options include 1½", 1 7/8" or 2½" (38 mm, 48 mm or 64 mm) and custom thicknesses. SONEX Valueline panels have noise reduction coefficients (NRC) up to 1.05, and are available in natural white or light grey, and water-based acoustic coating in standard premium and custom colors.
SONEX Valueline panels are Class A per ASTM E 84 rated for flame spread and smoke density and pass CAN ULCS-102. These panels can directly support LEED® v4.0 and v4.1 Building Design and Construction (LEED BD+C) and LEED v4.0 and v4.1 Interior Design and Construction (LEED ID+C) projects.
For more information or to find a representative, visit www.pinta-acoustic.com or call 1.800.662.0032 or +1.612.355.4200. To download "The Science of Better Acoustics" white paper, go to http://bit.ly/acousticscience.
About Savage Range Systems
Savage Range Systems' mission is to offer the safest and cleanest environment possible for shooters and range personnel, while providing innovative, durable and cost-effective range equipment. In addition to offering design/build expertise for indoor and outdoor shooting ranges, Savage Range Systems offers a wide variety of equipment, including Snail® System Deceleration Chambers and Deflection Ramps, automatic bullet recovery systems (ABRS), air barrier systems and more. To learn more about Savage Range Systems, visit www.savagerangesystems.com.
About pinta acoustic, inc.
pinta acoustic, inc. manufactures a broad range of attractive direct-apply, glue-up ceiling and wall panels, suspended lay-in grid panels, suspended baffles and clouds for residential, commercial and industrial applications. pinta acoustic's product line includes WHISPERWAVE™, PHONSTOP™, CONTOUR®, HARMONI, WHITELINE®, SQUARELINE®, WILLTEC™ Flat Sheets, SONEX® Classic, SONEX Valueline, SONEX One, SONEX Mini, SONEX AFS, SONEX Linear Absorbers, SONEX Lumen Linear Absorbers, SONEX PLANO Absorbers, SONEX Rondo, SONEX Clean, PROSPEC® Barrier, Foam and Composite Materials, and acouSTIC™ adhesives.
